Node-RED Image Processing Toolkit

A comprehensive Node-RED package providing 16 specialized nodes for high-performance image processing using C++ OpenCV backend. Perfect for computer vision workflows, batch processing, and automated image manipulation.

🚀 Quick Start

Installation

# Quick setup
./install.sh

# Manual installation
cd rosepetal-image-engine && npm install && npm run build
cd ../node-red-contrib-rosepetal-image-tools && npm install
cd ~/.node-red && npm install /path/to/node-red-contrib-rosepetal-image-tools

Requirements

• Node.js 16+ with node-gyp support
• OpenCV 4.x (auto-detected via pkg-config)
• C++ compiler with C++17 support

📋 Node Categories

🔄 I/O Nodes - Data Flow Management

Node	Purpose	Key Features
image-in	Load images from filesystem	JPEG/PNG/WebP/etc. support, Sharp backend
array-in	Collect data into positioned arrays	Dynamic positioning, batch collection
array-out	Assemble arrays from multiple sources	Timeout protection, ordered assembly
array-select	Extract elements with flexible selection	Python-like slicing, range selection

🔧 Transform Nodes - Image Processing

Node	Purpose	Key Features
resize	Scale images with aspect ratio control	Proportional scaling, multiple modes
rotate	Rotate images with custom padding	Sub-pixel precision, background colors
crop	Extract regions with pixel/normalized coords	Dynamic coordinates, bounds checking
padding	Add configurable margins	Color customization, flexible sizing
filter	Apply enhancement filters	Blur, sharpen, edge, emboss, Gaussian

🎨 Mix Nodes - Image Composition

Node	Purpose	Key Features
concat	Combine images horizontally/vertically	Direction control, padding strategies
mosaic	Position images on canvas	Coordinate positioning, manual placement
advanced-mosaic	Complex layouts with custom positioning	Pixel-perfect control, layering

🌈 Blend Nodes - Advanced Compositing

Node	Purpose	Key Features
blend	Alpha blend two images with opacity	Background removal, color tolerance
add-mask	Apply polygon-based masks to regions	Coordinate arrays, mask strength control

🤖 Specialized Nodes - AI/ML Integration

Node	Purpose	Key Features
cropBB	Extract crops from AI bounding boxes	Object detection integration, confidence filtering

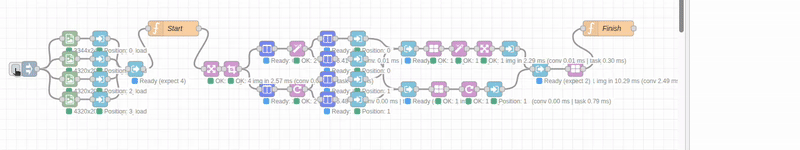

🔥 Real-World Use Cases

Computer Vision Pipeline

[Camera] → [AI Detection] → [CropBB] → [Classification] → [Decision]

Perfect for quality control, security systems, and medical imaging.

Batch Photo Processing

[Photo Collection] → [Array-Out] → [Resize] → [Filter] → [Watermark] → [Export]

Process hundreds of photos simultaneously with C++ performance.

🏗️ Architecture & Performance

Two-Tier Design

• JavaScript Layer: Node-RED integration, validation, I/O handling
• C++ Layer: OpenCV-powered image processing for maximum performance

Performance Benefits

• 10-100x faster than pure JavaScript implementations
• Parallel processing for array operations
• Memory efficient with optimized algorithms
• Async operations with real-time performance timing

Image Data Format

{
  data: Buffer,        // Raw pixel data
  width: number,       // Image width in pixels
  height: number,      // Image height in pixels
  channels: number,    // Channel count (1, 3, 4)
  colorSpace: string,  // "GRAY", "RGB", "RGBA", "BGR", "BGRA"
  dtype: string        // "uint8" (standard)
}

💡 Key Features

🎯 AI/ML Ready

Built-in support for computer vision workflows with cropBB node for object detection integration.

⚡ High Performance

C++ backend delivers professional-grade speed for production workflows.

🔧 Flexible I/O

Dynamic path configuration supports msg, flow, and global contexts for complex workflows.

📐 Professional Quality

Multiple output formats (Raw/JPEG/PNG/WebP) with quality control.

🔗 Workflow Integration

Designed for Node-RED patterns with array processing, error handling, and status display.

🛠️ Development

Project Structure

node-red-contrib-rosepetal-image-tools/
├── docs/nodes/          # Individual node documentation
├── nodes/              # Node-RED node implementations
│   ├── io/             # I/O nodes
│   ├── transform/      # Transform nodes
│   ├── mix/            # Composition nodes
│   ├── blend/          # Blending nodes
│   └── specialized/    # AI/ML nodes
├── lib/                # Shared utilities
└── assets/             # Documentation assets

rosepetal-image-engine/  # C++ processing engine
├── src/                # OpenCV implementations
├── binding.gyp         # Node.js addon configuration
└── package.json

Adding New Nodes

1. Implement C++ processing in rosepetal-image-engine/src/
2. Export function in src/main.cpp
3. Create Node-RED wrapper in appropriate nodes/ category
4. Add comprehensive documentation following existing patterns

🚨 Troubleshooting

Common Issues

• Build Failures: Ensure OpenCV 4.x installed and pkg-config available
• Missing Nodes: Check Node-RED installation path and package registration
• Performance Issues: Verify C++ addon built with optimization flags
• Memory Problems: Process large images in smaller batches

Performance Tips

• Use raw format for processing chains (fastest)
• Process arrays when possible for parallel execution
• Choose appropriate output formats for your destination
• Monitor node status displays for timing information

🤝 Contributing

• Issues: Report bugs and feature requests via GitHub
• Pull Requests: Contributions welcome for new nodes and optimizations
• Documentation: Help improve guides and examples

📄 License

This project is part of the Rosepetal development toolkit for Node-RED image processing applications.

---

💡 Pro Tip: Start with simple single-node workflows, then combine them into complex processing pipelines as you become familiar with the image format and node interactions.
