Configure and Deploy Inferencer Node for Image Classification ​

This tutorial guides you through using the inferencer node to perform image classification (within your workflow.

1. Add Inferencer Node to Flow ​

First, search the node and drag it onto the flow.

Add Inferencer Node to Flow

2. Connect Inferencer Node ​

Connect it to ohter nodes.

Connect Inferencer Node

3. Access Node Settings ​

Click the node to open its settings.

Access Node Settings

4. Main Settings ​

First, choose the input field, which indicates where the node will read the incoming image inside the message object. Then select the output field, which determines where the node will store the processing results.

Main Settings

5. Select Model Name for Use ​

Select Model Name for Use

6. Choose Model Results Option ​

Next. We select the model we want to use, in this case, classresults.

Choose Model Results Option

7. Select class_results ​

Select class_results

8. Activate Model Warm-Up ​

First inferences are usually slower. We'll enable warm-up so that the model does a first inference to avoid that. The remaining settings are described in the node’s documentation.

Activate Model Warm-Up

9. Open JSON Configuration ​

Open JSON Configuration

10. View JSON Configuration Details ​

JSON config window allows modifying model settings, such as minimum confidence, image size or tag names, for example.

View JSON Configuration Details

11. Modify Node Configuration ​

Modify Node Configuration

12. Complete Configuration Editing ​

Complete Configuration Editing

13. Complete Configuration Editing ​

Click "Done" to save your configuration changes.

Complete Configuration Editing

14. Deploy Node Configuration ​

Click "Deploy" to apply the current settings and start the service.

Deploy Node Configuration

15. Inject Image ​

We inject an image using the from-dataset node.

Inject Image

16. Review Classification Output ​

On the debug window, we can see the results. For classification models, we get the main tag and its score, along an array with all possible tags and their scores.

Review Classification Output

17. Sort Results by Confidence ​

Sort Results by Confidence

18. Expand Results Details ​

Expand Results Details

19. Enable Debug Image Display ​

In case we want to debug even more, we can visualize the image with the results.

Enable Debug Image Display

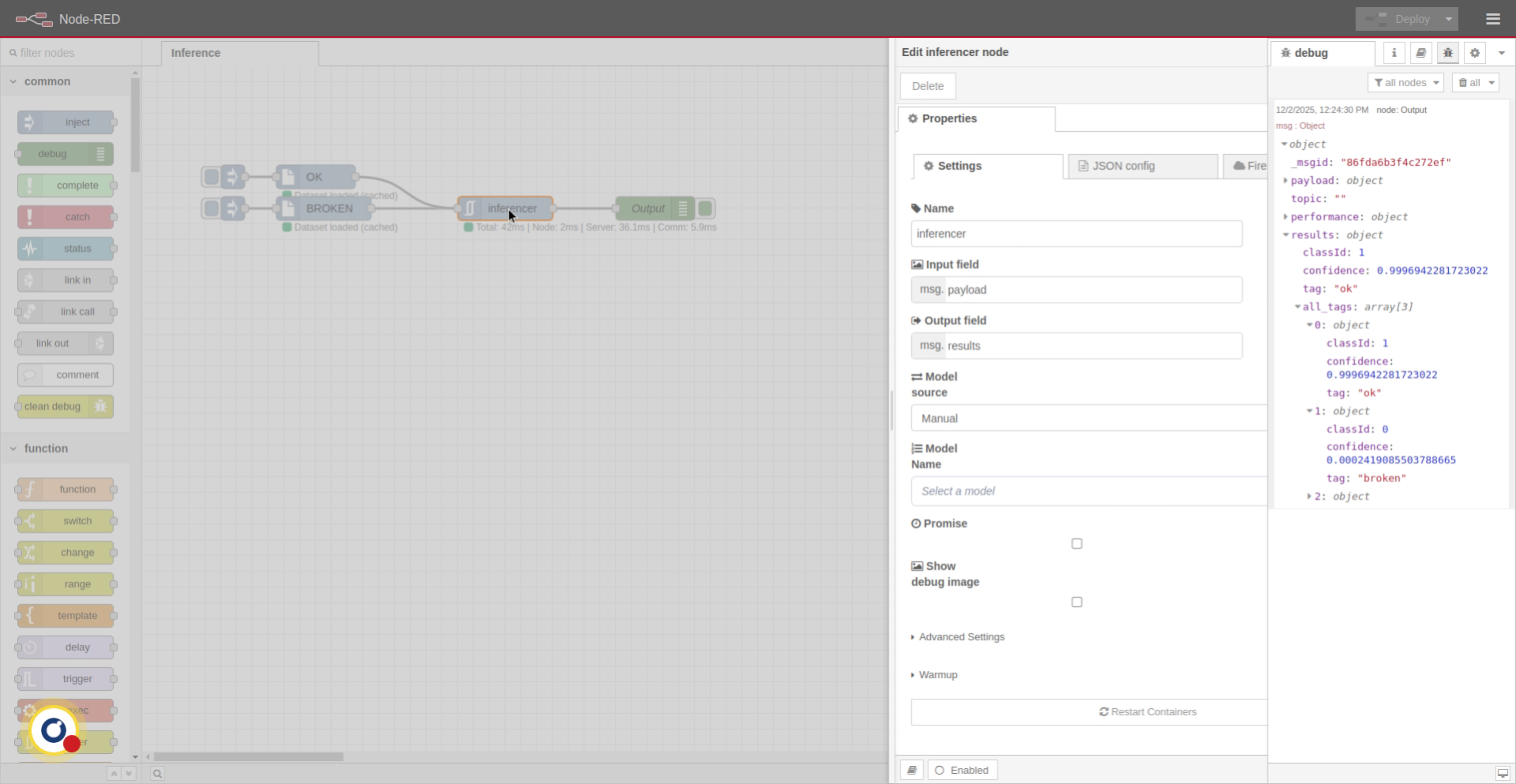

20. Set Debug Image Width Value ​

Set Debug Image Width Value

21. Navigate to Debug Settings ​

Go here to access debug image configuration options.

Navigate to Debug Settings

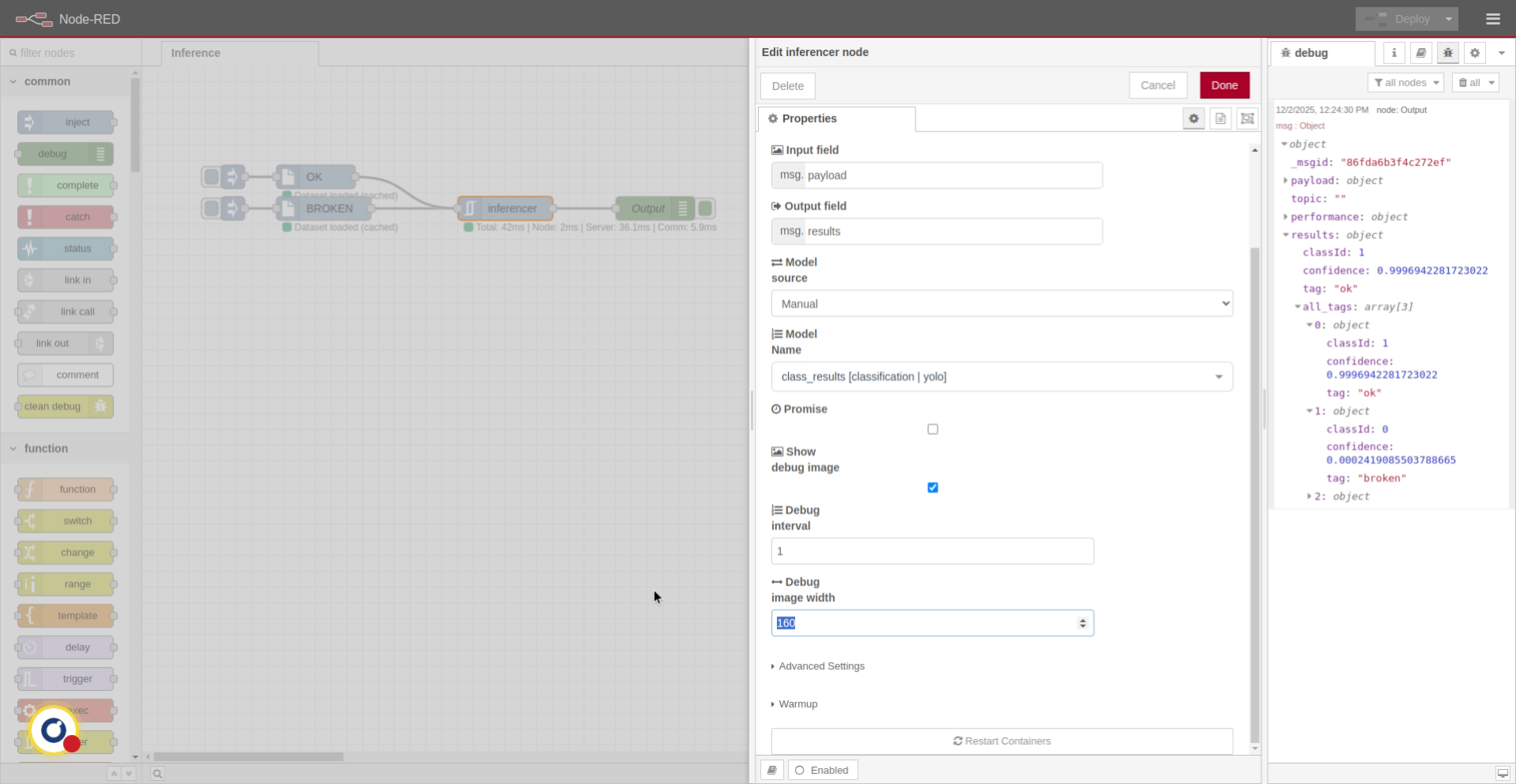

22. Redeploy Configuration ​

Redeploy Configuration

23. Redeploy ​

Click "Deploy" to apply debug image settings

Redeploy

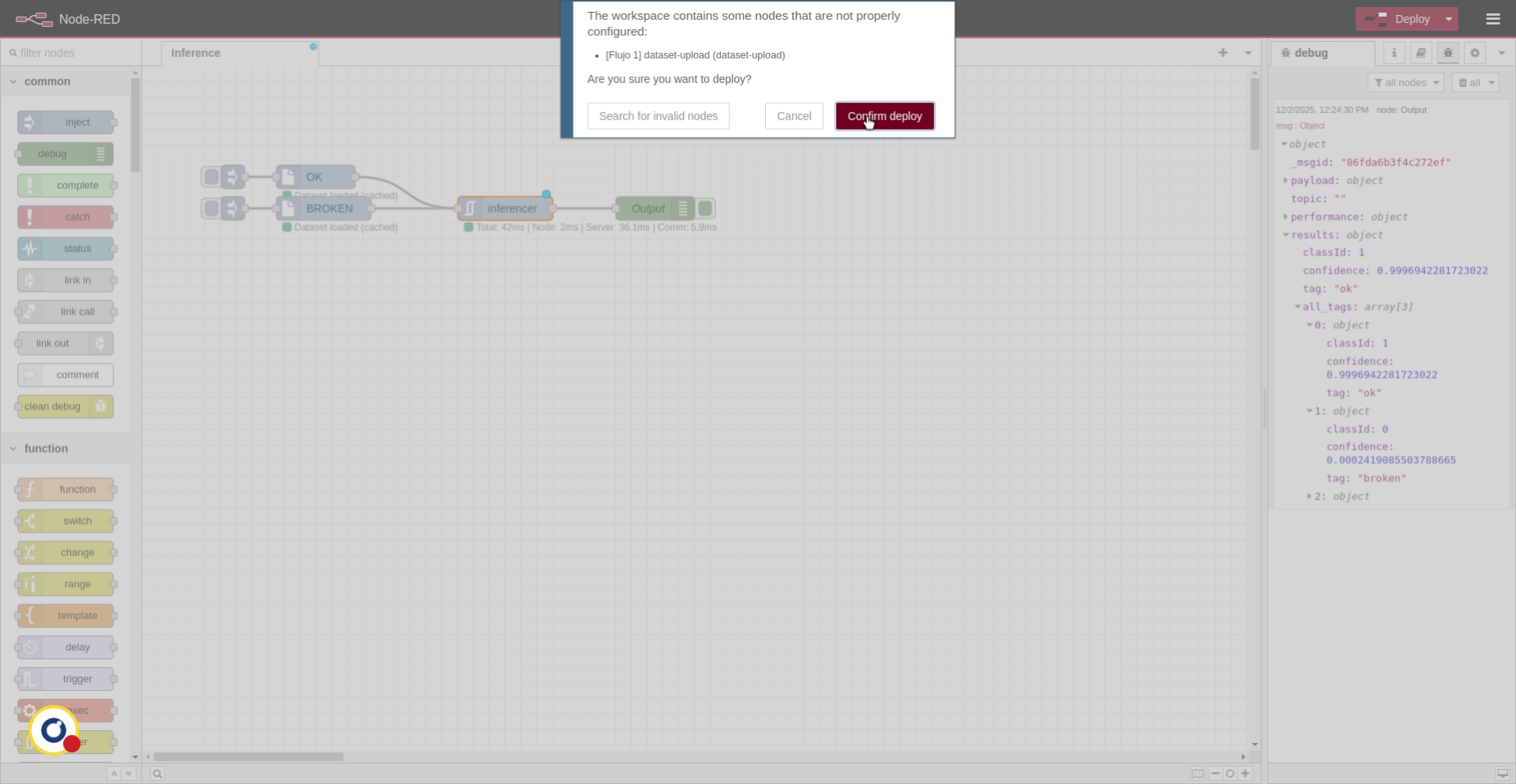

24. Test Inference ​

We can inject both OK and NOK images and see we're correctly classifying them.

Test Inference

25. Review and Test Node Functionality ​

Review and Test Node Functionality

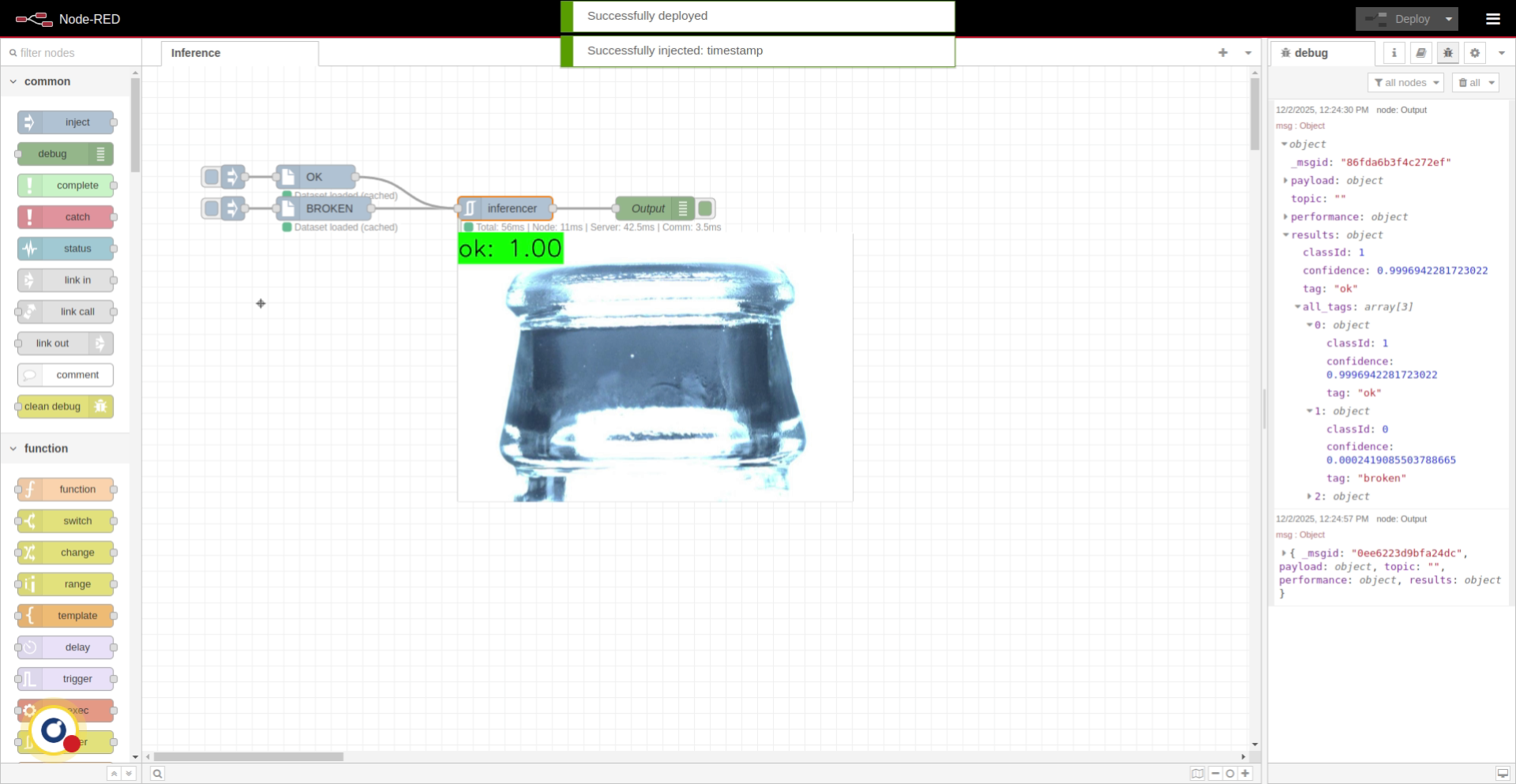

26. Overview ​

Overview

With this, we end the tutorial for basic usage of inferencer node. Thanks for using Rosepetal
